SUPRA SV1-430-MBS

€1.686,40

Next
SUPRA SV1-970-LBW

€1.881,00

SUPRA SV1-470-LBW

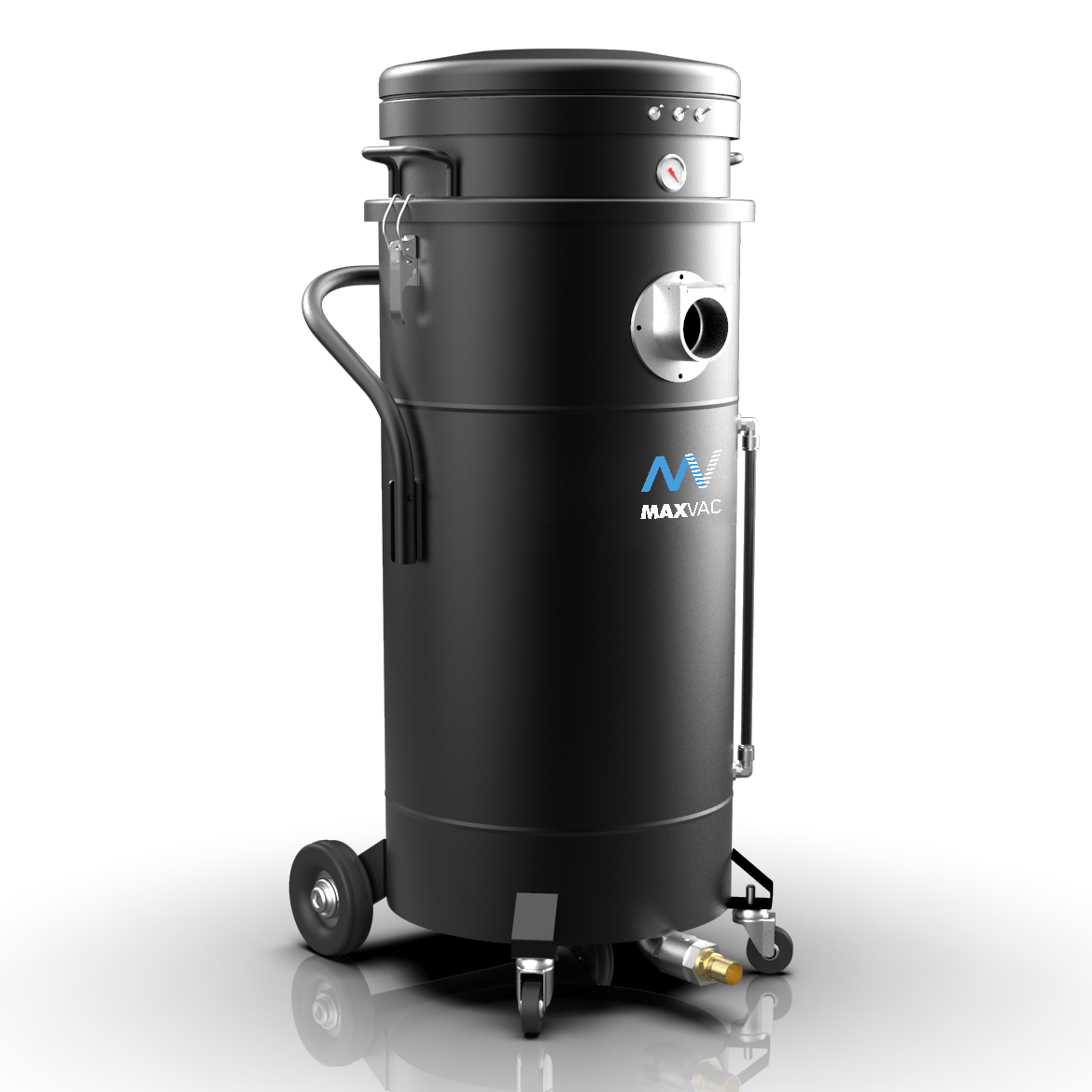

SUPRA SV1-470-LBW

€2.409,00 zzg. MwSt.

The Supra SV1-470-LBW is the ideal suction solution for collecting dust, solids, liquids, and light sludge easily and safely. Industrial suction is generated by three By-Pass motors that, working together in parallel, allow the operator to collect liquids extremely fast. The vacuumed material enters through a metal inlet with an... Read more

Voltage

Ask a Question

Ask a Question

The Supra SV1-470-LBW is the ideal suction solution for collecting dust, solids, liquids, and light sludge easily and safely. Industrial suction is generated by three By-Pass motors that, working together in parallel, allow the operator to collect liquids extremely fast. The vacuumed material enters through a metal inlet with an internal die-cast deflector in aluminum alloy and cast iron. The deflector directs the material to the bottom of the container and stops it from going towards the filter, thus protecting it and increasing its service life over time. The SV1-470-LBW vacuum cleaner is equipped with a 130 L container capacity in painted steel and can be supplied in AISI 304 stainless steel on demand. Discharge takes place by gravity thanks to a manual ball valve situated at the bottom of the container. An external level indicator shows the amount of liquid vacuumed and an internal level indicator stops the vacuum upon reaching maximum capacity. The SV1-470-LBW industrial vacuum is supplied with two independent filter kits: one for dust and one for liquids so that the vacuum cleaner can be used for different purposes with complete safety. The Wet&Dry suction kit is included with the vacuum cleaner.

Specifications

Technical Specifications

Dimensions

580 x 530 x 1160 mm

Filter Media

Nylon

Filter Type

Bag

Max. Air-Flow (incl. filters)

390 m3/h

Max. Depression

250 mBar

Motor Type

By-Pass

Motors

2

Noise Level

72 dB

Power

110V - 2,4 kW / 3,2 HP 230V - 3,9 kW / 5,2 HP

Voltage

110 Volt / 230 Volt

Warranty

12 Months

Weight

38 Kg

Capacity

130 L

Accessories

Related Accessories

Included
SUPRA FW10 Wet Filter SUPRA FW10 Wet Filter

SUPRA FW10 Wet Filter

MV-SV1-ACC-822
Optional
SUPRA Accessory - Iron reducer ø 70/50mm SUPRA Accessory - Iron reducer ø 70/50mm

SUPRA Accessory - Iron reducer ø 70/50mm

SV1-ACC-007
Optional
SUPRA Accessory - Wet & Dry Kit Ø 50mm SUPRA Accessory - Wet & Dry Kit Ø 50mm

SUPRA Accessory - Wet & Dry Kit Ø 50mm

SV1-ACC-330
Optional
SUPRA Accessory - Iron reducer ø 70/40mm SUPRA Accessory - Iron reducer ø 70/40mm

SUPRA Accessory - Iron reducer ø 70/40mm

SV1-ACC-065
Optional
SUPRA Accessory - Wet & Dry Kit Ø 40mm SUPRA Accessory - Wet & Dry Kit Ø 40mm

SUPRA Accessory - Wet & Dry Kit Ø 40mm

SV1-ACC-329

Downloads

Downloads

User Manual

DOWNLOAD
