SUPRA SV1-425-MBSV-Z22

CHF 4,387.00

SUPRA SV1-850-MBS

CHF 4,624.00

SUPRA SV1-430-A45R-Z22-IIIC

Name: SUPRA SV1-430-A45R-Z22-IIIC Z22 Atex Industrial Vacuum, 45L Drum
Brand: MAXVAC
SKU: SV1-430-A45R-Z22-IIIC-110-UK
Price: 4457.0 USD
Availability: InStock

CHF 4,457.00 excl. tax

The SV1-430-A45R-Z22-IIIC is an industrial, IIIC-certified vacuum cleaner designed for the extraction of conductive metal dust. SV1-430-A45R-Z22-IIIC is a vacuum cleaner equipped with a powerful single-phase Brushless motor, which ensures high performance and maximum safety even in hazardous areas. For material collection, the vacuum cleaner is equipped with a sophisticated... Read more

Voltage

110 Volt

230 Volt

Ask a Question

SKU :

The SV1-430-A45R-Z22-IIIC is an industrial, IIIC-certified vacuum cleaner designed for the extraction of conductive metal dust. SV1-430-A45R-Z22-IIIC is a vacuum cleaner equipped with a powerful single-phase Brushless motor, which ensures high performance and maximum safety even in hazardous areas.

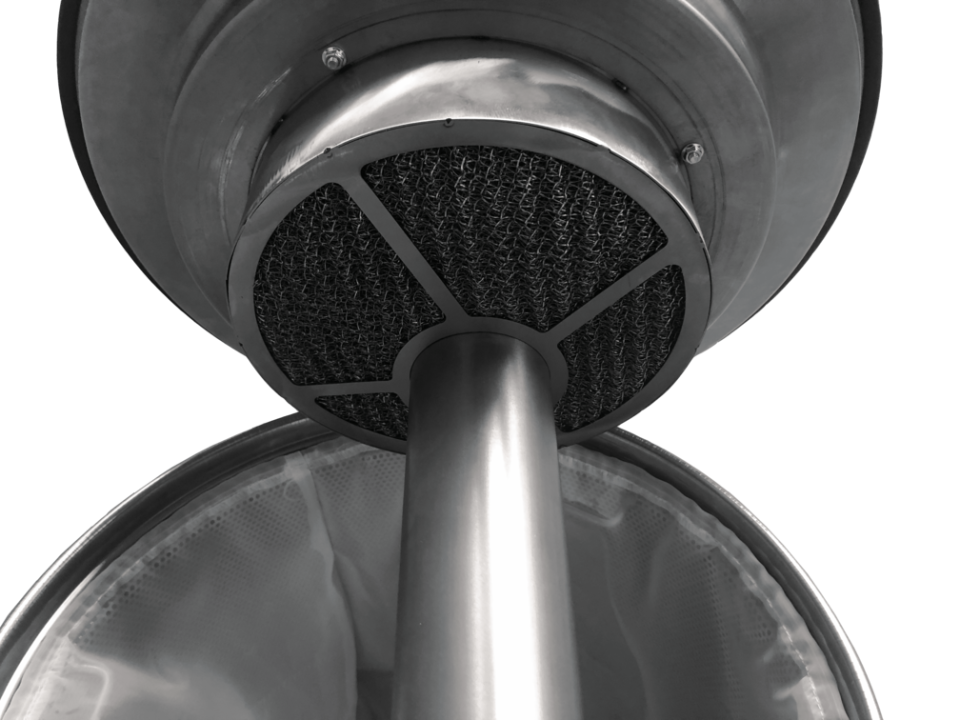

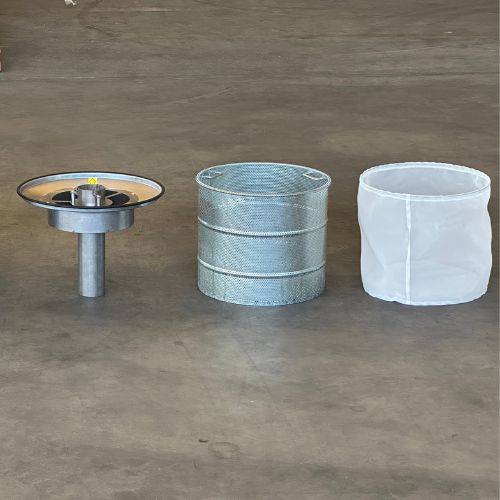

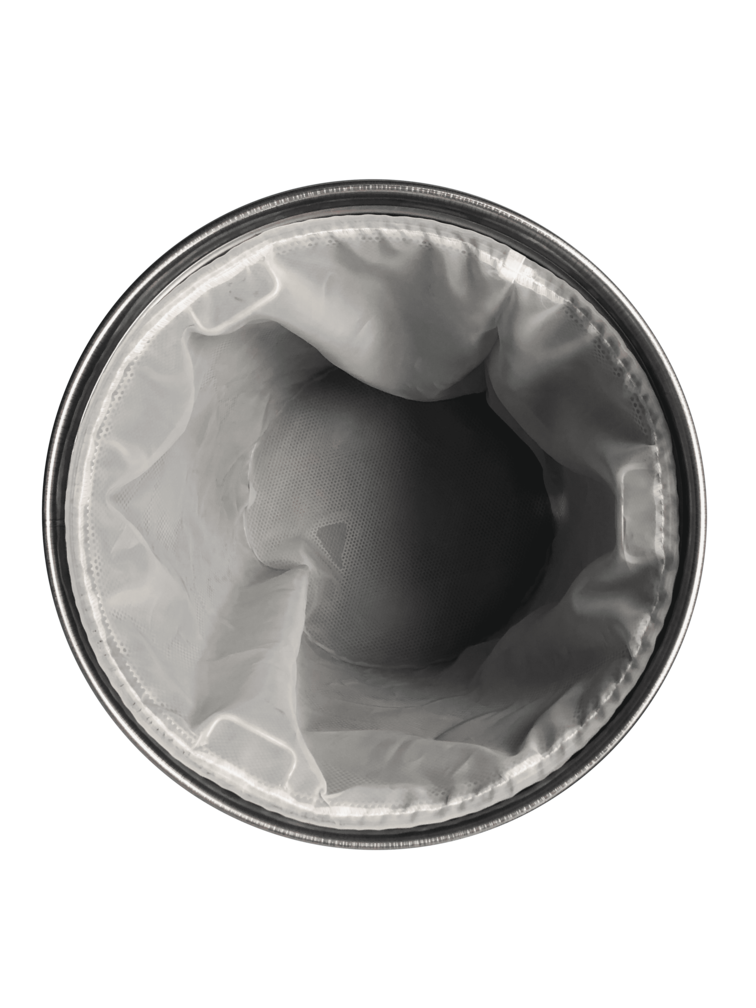

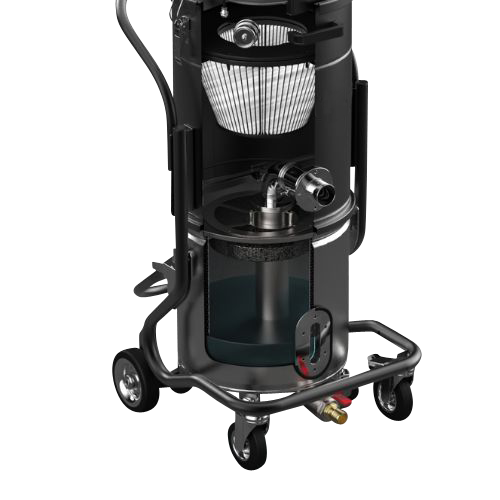

For material collection, the vacuum cleaner is equipped with a sophisticated explosion-proof system for suction of conductive metal powders, which are directly immersed in a bath of inert liquid in the container. The motor is protected by a class H13 large-surface antistatic conical filter. The vacuum cleaner provides additional levels of filtration inside the container to ensure the highest standards of safety even in suction of potentially explosive dust: in fact, inside the inerting container there is a metal grid filter to trap any sparks and a nylon filter, capable of separating the sucked metal poor from the inert liquid, to be then recovered and reused. A convenient patented quick-connect system allows the container to be unhooked and reconnected in one easy motion and without the use of tools. An overpressure valve allows gas to escape in cases of reaction of the powder with the liquid used.

Discharge of the liquid used is by gravity via a convenient tap located at the bottom of the container. The container is made of AISI 304 stainless steel and has a convenient inspection window on the front to check the level of the liquid inside.

Thanks to the SV1-430-A45R-Z22-IIIC sucking up metal conductive dust to neutralize it has never been easier and safer!

Specifications

Technical Specifications

Atex Marking

II 3D Ex htc IIIC T140°C Dc

Dimensions

550 x 620 x 1400 mm

Filter Media

Antistatic Polyester

Filter Surface Area

35,000 cm2

Filter Surface Area

35.000cm²

Filter Type

Cartridge Filter

Max Air-Flow (incl. filters)

220 m3/h

Motor Type

Brushless Motor

Noise Level

72 dB

Power

1,1 kW / 1,5 HP

Vacuum in continuous run

230 mBar

Voltage

110 Volt / 230 Volt

Warranty

12 Months

Weight

50 Kg

Ø Inlet

50 mm

Capacity

45 L

Accessories

Related Accessories

Included

Downloads
